Circuit board assembly, Lockeport, Nova Scotia

Prototype to production, built and inspected in Canada.

Stencil-free SMT prototypes, mixed-technology production and cable assemblies, built to IPC-A-610 with optical inspection on every board. One team, one roof, since 1976.

Built to IPC-A-610 AOI on every board X-ray and cleanliness testing

  • 1976 Building circuit boards
  • IPC-A-610 Workmanship standard on every build
  • 100% AOI Every board optically inspected
  • High-Speed Mycronic pick and place
  • Made in NS Canadian supply, same time zone

One partner, every stage

Start with five boards. Stay for five thousand.

The team that builds your prototype is the team that runs your production, so nothing gets lost in a handoff.

STAGE 01

Prototype

Get working boards on your bench without paying for tooling you may change next week.

  • Our Mycronic jet printer applies paste straight from Gerber data, so there is no stencil cost or wait
  • DFM review before anything is built
  • AOI on every board, X-ray where the parts need it
Quote a prototype
STAGE 02

Pilot run

Lock down the build and the test before you commit to volume.

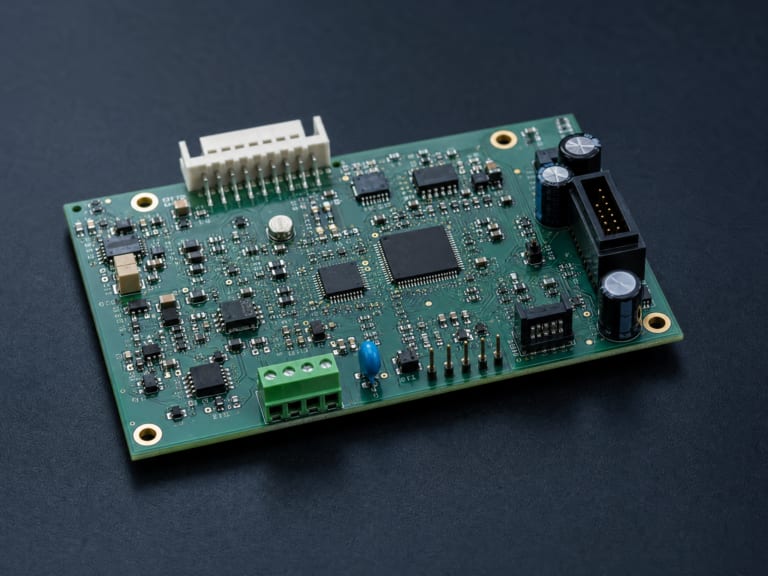

  • SMT, through-hole and mixed-technology on the same order
  • Wave, selective and hand soldering
  • Feedback from the floor on anything that will slow production
Quote a pilot run
STAGE 03

Production

Repeatable builds, scheduled releases and a team that remembers your product.

  • High-speed placement on our Mycronic pick and place
  • Cleaning in a specialized PCB washer and final inspection to IPC-A-610 before shipping
  • Cables and sub-assemblies built alongside your boards
Quote production
Technician in a blue lab coat inspecting a circuit board under a microscope
Marine electronics since 1973

Who we build for

Trusted by ocean technology companies, from sonar to satellites.

Allendale started in 1973 building marine electronics in a Nova Scotia fishing town. Today a large share of our work is for ocean technology and marine companies, whose products have to keep working offshore, underwater and a long way from a repair bench.

Ocean technology and marine

Boards and cable assemblies for instruments and systems that are built to work at sea.

Sonar to satellites

Our assemblies have gone into sonar, satellites and plenty in between, where a field failure is expensive to fix.

Built to IPC-A-610

Every assembly is built and inspected to IPC-A-610. Tell us the class your product requires when you send files.

Your design stays yours

We don't publish customer names or projects. Your files, BOMs and drawings stay confidential, and we're glad to work under your NDA.

How a board moves through the floor

Checked at every step, not just at the end.

Problems are cheapest to fix where they start. Each stage has its own check before the board moves on.

  1. 01 File review DFM check on your Gerbers and BOM.
  2. 02 Paste Jetted by our Mycronic jet printer, no stencil.
  3. 03 Placement Mycronic high-speed pick and place.
  4. 04 AOI Optical inspection, every board.
  5. 05 X-ray GlenBrook, for BGAs and hidden joints. as needed
  6. 06 Through-hole Wave, selective or hand soldered.
  7. 07 Cleaning Washed in a specialized PCB washer.
  8. 08 Final inspection Checked to IPC-A-610 before it ships.

Why buyers stay

A small Canadian team with fifty years on the floor.

No broker in the middle and no overseas freight between you and your boards. When you call, you reach the people building them.

Talk to the builders

Direct access to inside sales and engineering, not a ticket queue.

Shorter supply line

Built in Nova Scotia, shipped within North America, in your time zone.

ESD discipline

Every part handled as sensitive. Wrist straps tested and logged each shift.

People who stay

Long-serving production, quality and purchasing staff keep the experience on the floor.

We build our own product too. Allendale designs and manufactures the FizzWizz carbonation system for breweries, shipped to five or more continents since 2016. Visit BrewWizz

Before you send files

Questions buyers ask first.

Something not covered here? Call (902) 656-2652 or email sales@allendale-electronics.com.

What files do you need for a quote?
Gerber or ODB++ files, a bill of materials, and pick-and-place (XY) data if you have it. An assembly drawing and any test requirements help us quote accurately the first time.
What workmanship standard do you build to?
IPC-A-610, the industry acceptance standard for electronic assemblies. Every board is built and inspected to it. Let us know which IPC class your product requires when you request a quote.
Class 2 vs Class 3 explained
What industries do you build for?
A large share of our work is for ocean technology and marine companies, and our assemblies have gone into everything from sonar to satellites. We don't name customers, but we're happy to talk through similar work under NDA.
Do I need to buy a stencil for a prototype?
No. Our Mycronic jet printer applies solder paste directly from your Gerber data, so small runs skip the stencil cost and the wait for one to arrive.
How are boards inspected?
Every board goes through automated optical inspection. BGAs and other hidden joints are checked on our GlenBrook X-ray, and boards are cleaned in a specialized PCB washer before final inspection to IPC-A-610.
Can you build boards that mix SMT and through-hole?
Yes. Mixed-technology boards are routine here. Through-hole parts are wave, selective or hand soldered by a team with more than 40 combined years of experience.
Do you build cables and sub-assemblies too?
Yes. Coax cables, wire harnesses, transformers and inductors, from single units to several thousand, so the parts that go with your boards can ship together.
Where are you located?
Lockeport, Nova Scotia, Canada. We've built circuit boards here since 1976.

Ready when you are

Send your files. Get a clear, considered quote.

  • 01

    Gerber or ODB++ for the bare board

  • 02

    BOM with manufacturer part numbers

  • 03

    XY data for placement, if you have it

  • 04

    Quantity and timing you're working to
